ViSimpl Development

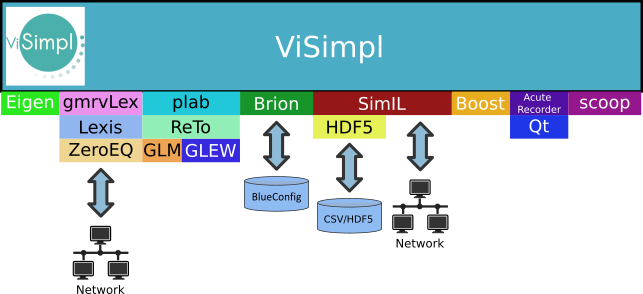

ViSimpl software stack.

Fig. 3 ViSimpl software stack.

The information in this documentation refers to ViSimpl version 1.8.9.

ViSimpl dependencies and options

These libraries are required for compilation of ViSimpl:

  • GLM
  • Qt version 5.
  • GLEW
  • Eigen3
  • HDF5
  • ReTo
  • SimIL
  • plab
  • AcuteRecorder
  • scoop
  • Boost
  • Brion

The following libraries are optional and can be enabled with the following CMake options:

  • VISIMPL_OPTIONALS_AS_REQUIRED: Enables/Disables network autodiscovery and communications. Requires:
    • ZeroEQ
    • gmrvLex
    • Lexis

However those optional libraries can be deactivated with the additional CMake options:

  • VISIMPL_WITH_ZEROEQ: Enables/Disables autodiscovery and network communications.
  • VISIMPL_WITH_GMRVLEX: Enables/Disables the gmrvLex communication messages.

Additionally if the option VISIMPL_WITH_OPENMP is enabled and the system OpenMP library is available some ViSimpl operations will use OpenMP multithreading parallelism.

ViSimpl compilation

Compilation steps:

  1. Before configuring the project with CMake the file .gitsubprojects must be edited and those dependencies needed must be uncommented. By default only the minimum required libraries are enabled. To compile a feature complete ViSimpl all dependencies must be uncommented in this file.
  2. After that the project must be configured using CMake (either with cmake command or ccmake but the GUI CMake application is the preferred one). It’s recommended to use a build directory different from the one containing the source code.
  3. Enable the options required for your build. CMake will display also the options of the depedencies, but the default options are enough to compile NeuroScheme and no further modifications are required.
  4. Once configured with CMake the project can be compiled.

Note

For ViSimpl to connect and communicate with NEST software the SimIL library must be configured with the option SIMIL_WITH_REST_API enabled.

Note

For ViSimpl and StackViz applications (both included and compiled in this project) to discover and communicate with each other you must compile the project with all options enabled. If autodiscovery is not available (i.e. supercomputing environments) ViSimpl application already includes an embedded version of StackViz that can be enabled in the session.

ViSimpl source code

The source code is structured in three subdirectories:

  • visimpl: Contains ViSimpl graphical application (and a version of StackViz embedded for computers without autodiscovery).
  • stackviz: Contains StackViz standalone application source code for histogram data visualization.
  • sumrice: Library that contains common widgets, classes and methods used in both applications.

ViSimpl users manual

The user manual for the latest version of ViSimpl is available online.
